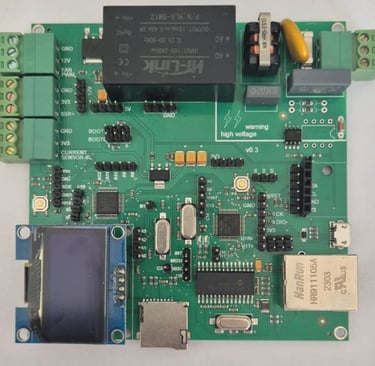

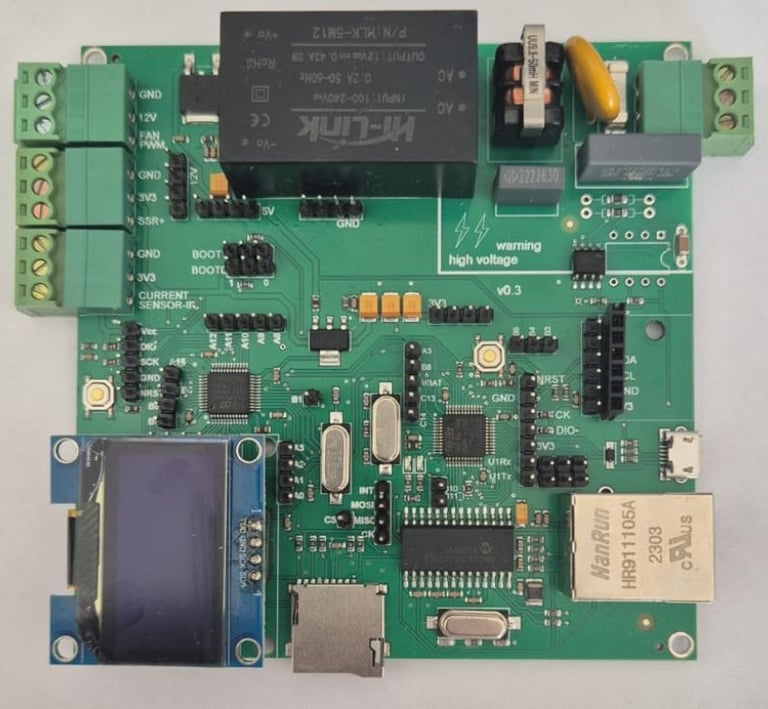

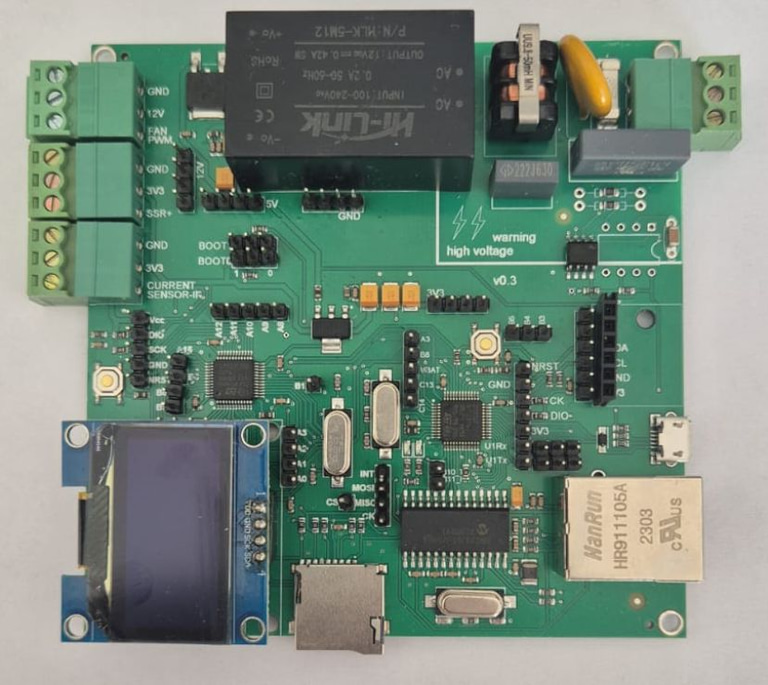

Smart PSU controller via MQTT

Smart Power Supply Unit Controller for Crypto Mining Industry

- 220VAC supply with input filter
- Ethernet network compatible with TCP & UDP & DHCP
- Isolated Input Voltage, Input Frequency measuring,
- Temperature, Humidity measuring,
- Set and track informations via MQTT
- In application programming (IAP) from TFTP server via master and slave MCU (STM32F103CBT6)
- SD Card to store firmware's and other data
- Fully isolated design,
- Isolated on/off SSR relay,
- 12V Fan control to cool down PSU
- Output current and power consumption measuring,
- 128x64 LCD,
